Opentype Flourmill
Product Name
- Regular Commercial Flour Mills
| Model | HFS-10 | HFS-12 | HFS-14 |
| Model Name & Size | 10" Regular | 12" Regular | 14" Regular |
| Stone Width | 48 mm | 75 mm | 75 mm |
| Motor Power | 1.5 HP,1440 RPM | 2 HP,1440 RPM | 3 HP,1440 RPM |
| Power Consumption | 1 Unit | 1.6 Unit | 2.6 Unit |
| V Belt Size | B-40 | B-49 | B-53 |
| Shaft | 25 mm | 35 mm | 35 mm |
| Bearing Size | 6205 Z | 6207 Z | 6027 Z |
| Crush Average | 12 to 20 kg | 30 to 45 kg | 35 to 50 kg |
Product Name
- T.P. Commercial Flour Mills
| Model | HFS 12 TP | HFS 14 TP | HFS 15 TP | HFS 16 TP |
| Model Name & Size | 12" TP | 14" TP | 15" TP | 16" X 3" TP |
| Stone Width | 75 mm | 75 mm | 75 mm | 75 mm |
| Moter Power | 2 HP , 1440 RPM | 3 HP , 1440 RPM | 4 HP , 1440 RPM | 5 HP , 1440 RPM |
| Power Consumption | 1.6 Unit | 2.5 Unit | 3.25 Unit | 6 Unit |
| V Belt Size | B-49 | B-53 | B-53 | C-65 |
| Shaft | 35 mm | 35 mm | 35 mm | 40 mm |
| Bearing Size | 6207 Z | 6207 Z | 6207 Z | 6208 Z |
| Crush Average | 30 to 50 kg | 40 to 55 kg | 40 to 70 kg | 60 to 90 kg |
Product Name

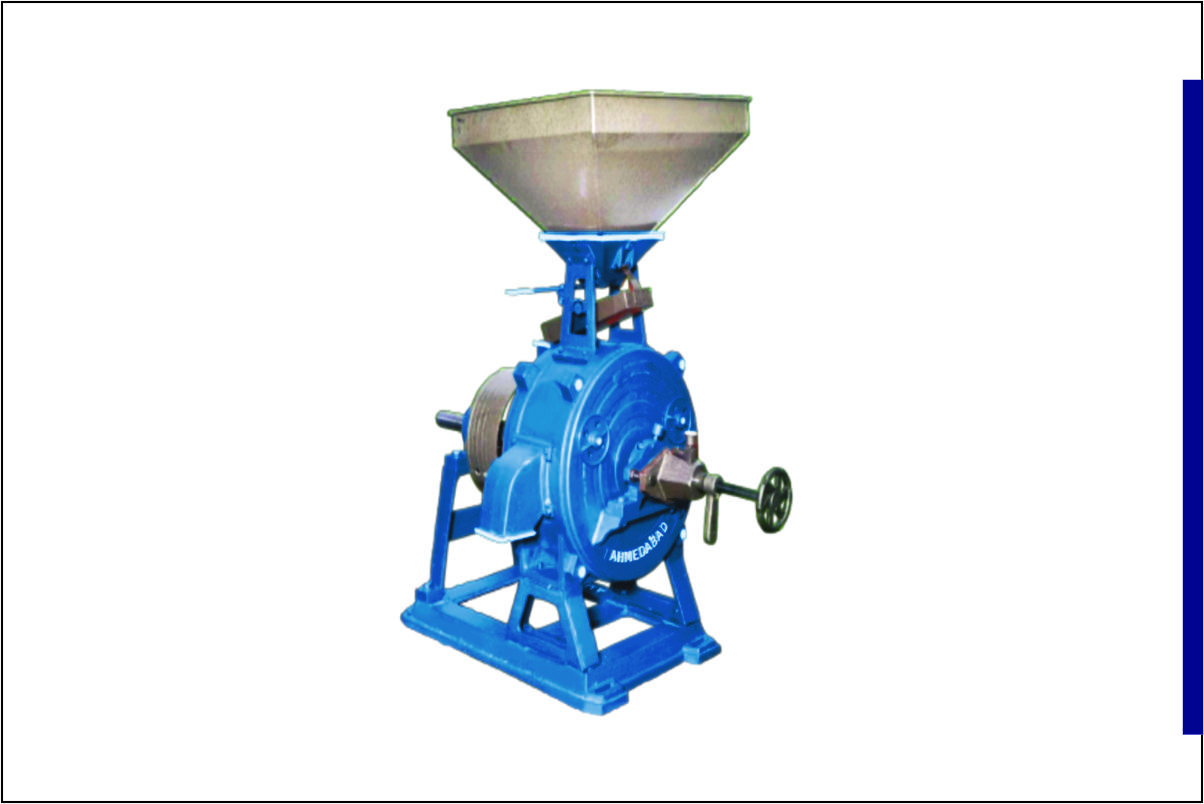

- DSP Commercial Flour Mills
| Model Name & Size | 16" X 3" DSP (40 cm) | 16" X 4.5" DSP (40 cm) | 18" X 4.5" (4.5cm)(40 cm) |
| Moter Power (Three Phase) | 7.5 HP 1440 RPM | 7.5 HP 1440 RPM | 10 HP 1440 RPM |
| Pully | 10"x5"x40"mm | 12"x5"x40"mm | 12"x5"x40"mm |
| RPM | 800 to 850 | 800 to 850 | 700 to 750 |
| Bearing Size | 6208 Z (2Pcs.) 1208 (1Pcs.) | 6208 Z (2Pcs.) 1208 (1Pcs.) | 6208 Z (2Pcs.) 1208 (1Pcs.) |
| Shaft | 39" x 40mm | 39" x 40mm | 39" x 40mm |
| Crush Average per Hour 230 V | 100 to 120 Kg. | 120 to 130 Kg. | 130 to 160 kg |
